Overlay Cabinet Hinges: Fit, Finish, No Guesswork

That annoying cabinet-door problem - the one where the door almost sits right, but the gaps wander, the corner nicks the stile, or the whole thing looks slightly skew-whiff - is usually a hinge choice issue, not a carpentry failure. With overlay cabinet hinges, tiny differences in overlay and adjustment make a very visible difference to the finished look.

What “overlay” actually means (and why it matters)

Overlay is simply how much the door covers the cabinet face frame (or the cabinet side panel on frameless boxes). An overlay door sits on the outside of the cabinet opening rather than closing flush inside it.

That sounds straightforward, but it dictates everything else: the hinge type you can use, where the screw holes land, whether you need a face-frame plate, and how consistent your reveals (those narrow, even gaps between doors and frames) will be once the kitchen, laundry, or vanity is in daily use.

If you’re matching existing cabinetry, overlay is the first measurement to confirm. If you’re building new, overlay is a design decision - it affects the overall look (more “full and modern” vs more frame showing) and whether door edges clash when two doors meet.

Full overlay, half overlay, and inset - the quick reality check

Most DIY headaches come from buying hinges labelled “overlay” without checking which overlay they’re designed for.

Full overlay means the door covers almost the whole face frame edge, leaving a slim reveal. It’s a clean look, and very common when you want the cabinetry to feel more continuous.

Half overlay (often called partial overlay) is used when two doors share the same centre stile. Each door overlays half the stile, so the pair meets neatly without fighting each other.

Inset is the opposite of overlay - the door sits inside the opening, flush with the frame. Inset hinges are a different conversation, and trying to force an overlay hinge to behave like an inset one is a fast way to end up with binding doors and chewed-out screw holes.

The hinge styles you’ll actually come across

Overlay cabinet hinges come in a few common styles, and the “best” one depends on the cabinet build, the look you’re chasing, and how much adjustability you want.

Concealed cup hinges (Euro-style)

These are the go-to for kitchens and modern cabinetry because they’re adjustable. The hinge cup sits in a 35 mm hole drilled into the back of the door, and the arm mounts to a plate on the cabinet. If you’ve got slightly inconsistent carcasses (welcome to real renovations), that adjustability saves time and makes the final gaps look deliberate.

They’re also handy when you’re repainting or re-facing, because you can take doors off and on without disturbing the door position too much.

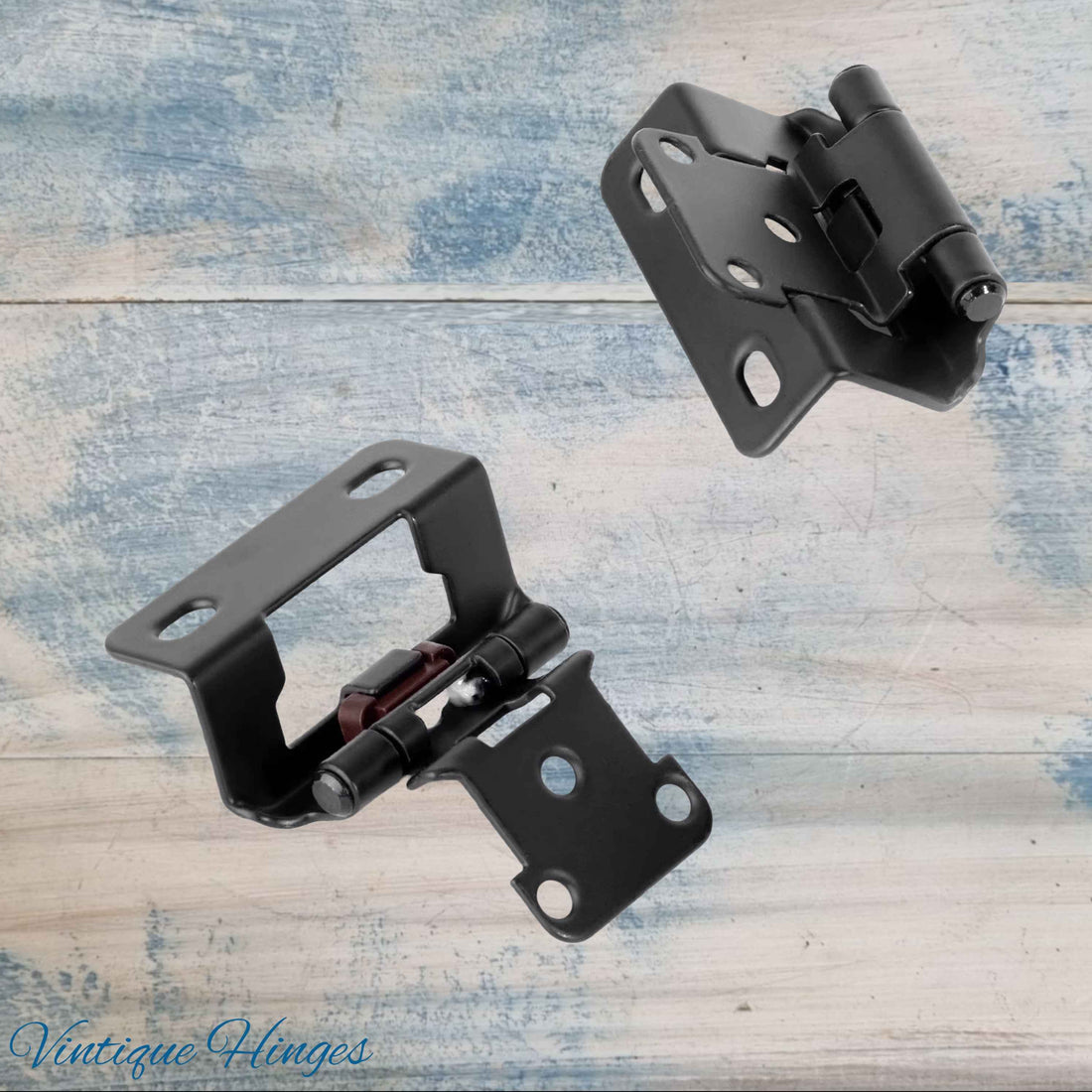

Face-frame overlay hinges

If you’ve got traditional face-frame cabinets, you’ll often see hinges designed to mount to the frame and the door, sometimes with a specific “crank” shape that creates the overlay. These can be visible or mostly hidden depending on the pattern.

The main win here is compatibility with older cabinetry, where you want a straightforward fit without re-drilling for cup hinges.

Decorative surface-mount hinges (rustic and heritage looks)

For furniture restoration, pantry cupboards, and character cabinetry, you might choose a surface-mount hinge on purpose - think rustic strap-style looks, aged finishes, or painted cabinetry where the hinge becomes part of the design.

The trade-off is adjustment. What you gain in style, you often lose in fine-tuning, so your measuring and positioning needs to be more accurate from the start.

Measuring overlay properly (before you buy)

If you’re replacing existing hinges, remove one door and measure from the edge of the cabinet opening (or face frame) to the edge of the door. That distance is your overlay.

On paired doors, check the centre stile area as well. If the doors are meant to share a stile, you’re typically looking at a half overlay setup (or two different hinge cranks), not two full overlays trying to occupy the same space.

Also check door thickness. Many hinges have a comfortable range, but once you get into chunky timber doors or slimmed-down retrofitted doors, the hinge choice and screw length matter. Too long and you’ll punch through a door face right when you’re feeling proud of your paint job.

Fitting tips that save time (and your patience)

Start by getting the door position right without worrying about “perfect” gaps. Use packers or wedges so the door sits where you want it visually, then mark hinge positions.

If you’re using concealed cup hinges, drill clean, accurate cup holes. A wobbly hole means a hinge that never quite sits flat, and that shows up as a door that springs or twists. For surface-mount hinges, pre-drill your screw holes and use the right gauge screws - especially in rimu, matai, and other dense timbers where it’s easy to snap a cheap screw.

When you’re adjusting, do it in a sensible order: get the door height consistent first, then the side-to-side gap, then the in-and-out so the door sits flat against any stops or bumpers.

Finishes that suit NZ homes (and real use)

Cabinet hinges aren’t just about swing - they’re part of the whole hardware picture. Black looks sharp on chalk-painted cabinetry and rustic timber. Antique brass suits villas and bungalows. Stainless and nickel cope well in coastal zones and busy laundries.

If your project is part of a wider refresh, it’s worth matching hinge finish to your knobs, cup pulls, latches, and even nearby door hardware so the home reads as intentional rather than “whatever was on special”.

If you’re gathering hardware for a cabinet or furniture project and want everything to feel consistent - hinges, fixings, and the decorative bits that finish the job - you can shop by project on Vintique and keep the look cohesive without bouncing between suppliers.

The best overlay hinges are the ones you don’t notice after fitting - doors sit even, they open cleanly, and the gaps stay steady. Measure overlay first, choose the hinge style that suits the cabinet build, and you’ll get a result that looks like it was always meant to be there.
